Description

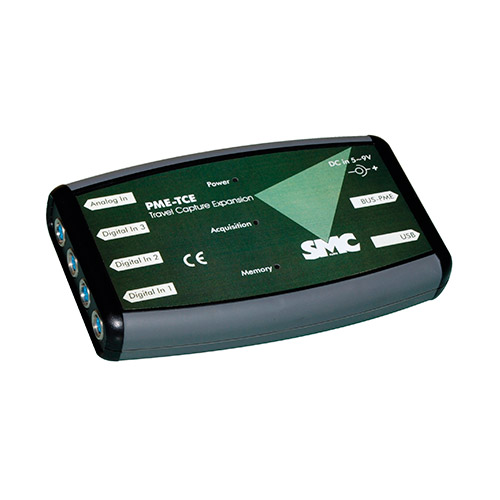

The PME-TCE is a small accessory that can be purchased along with the PME-500-TR Circuit Breaker Analyzer or ordered later on with no installation required.

It provides input for analogue & digital angular or linear position transducers available in the general market as well as from EuroSMC. The motion information includes pole speed, stroke, and wipe measurements, and is automatically added to the standard PME-500-TR test report.

Characteristics:

• High capacity flash memory for results storage
• No external power supply required
• RJ-45 type connection to the PME-500-TR’s PME BUS
• USB type connection to PC
• Up to three digital and one analogue transducers (linear or rotary) can be connected simultaneously
• Fully set up and controlled from the PME-500-TR’s touch screen

Aplications:

– Condition evaluation of circuit breaker’s motion mechanism.
